Increasing the Maximum file size for Web.Config

11 June 2015

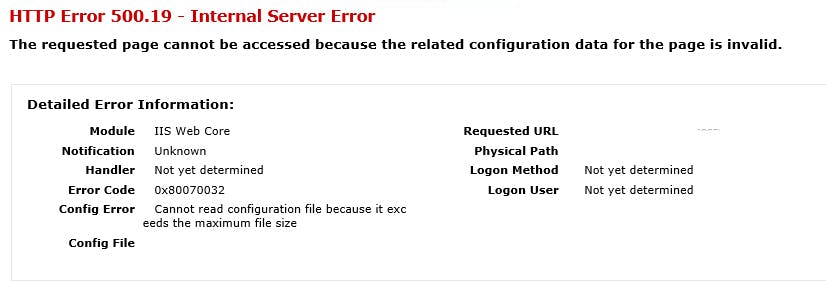

This can happen in any ASP.NET Web Application, but as Sitecore 8's default web.config file is now 246 kb this makes it extremely susceptible to exceeding the default 250 kb limit.

To change the size limit you need to modify/create the following registry keys:

HKLM\SOFTWARE\Microsoft\InetStp\Configuration\MaxWebConfigFileSizeInKB (REG_DWORD)

On 64-bit machines you may also have to update the following as well

HKLM\SOFTWARE\Wow6432Node\Microsoft\InetStp\Configuration\MaxWebConfigFileSizeInKB (REG_DWORD)

You will probably find that these keys need to be created, rather than just being updated. After changing them you will also need to reset IIS.

Alternatively

Alternatively you can leave the default values at 250 kb and split the web.config files into separate files.

More information on doing this can be found here:

http://www.davidturvey.com/blog/index.php/2009/10/how-to-split-the-web-config-into-mutliple-files/

My personal preference for Sitecore projects is to update the the max file size as this allows keeping the web.config file as close to the default install as possible. The benefit of doing this is it makes upgrades easier, rather than needing to know why your web.config doesn't match the installation instructions.

Creating 301 redirects in web.config

20 November 2013

For various reasons at times you may need to create a 301 redirect to another URL. This could be as a result of a page moving or you just need to create some friendly URLS.

As a developer you may be tempted to do something like this in code...

1private void Page_Load(object sender, System.EventArgs e)
2{
3    Response.Status = "301 Moved Permanently";
4    Response.AddHeader("Location","http://www.new-url.com");
5}

But do you really want your project cluttered up with files who's only purpose is to redirect to another page!

You may also be tempted to try doing something with .NET's RouteCollection. This would certainly solve an issue on creating a redirect for anything without a file extension, but there is a better way.

In your web.config file under the configuration node create something like this

1<location path="twitter">
2  <system.webServer>
3    <httpRedirect enabled="true" destination="http://twitter.com/TwitterName" httpResponseStatus="Permanent" />
4  </system.webServer>
5</location>

The location path specifies that path on your site that this redirect will apply to. The destination value in the httpRedirect is where the redirect will go to. As well as setting Permanent for the httpResponseStatus you can also specify Found or Temporary depending on your needs.
